Angular contact ball bearing

Showing all 3 results

• Read more

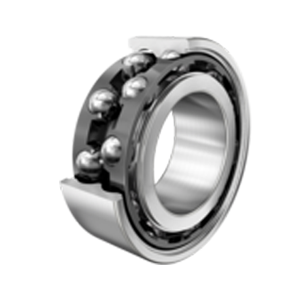

  5200S

  Double row angular contact ball bearing.

  Enquire now

  Symbol

  Value

  Description

  BS

  52

  Bearing Series

  BT

  Double row angular contact ball bearing

  Bearing Type

  d

  10 mm

  Bore diameter

  D

  30 mm

  Outside diameter

  B

  14.3 mm

  Width

  Cr

  7.15 kN

  Basic dynamic load rating, radial

  C0r

  3.9 kN

  Basic static load rating, radial

  ≈m

  0.05 kg

  Weight
• Read more

  5201S

  Double row angular contact ball bearing.

  Enquire now

  Symbol

  Value

  Description

  BS

  52

  Bearing Series

  BT

  Double row angular contact ball bearing

  Bearing Type

  d

  12 mm

  Bore diameter

  D

  32 mm

  Outside diameter

  B

  15.9 mm

  Width

  Cr

  10.5 kN

  Basic dynamic load rating, radial

  C0r

  5.8 kN

  Basic static load rating, radial

  ≈m

  0.06 kg

  Weight
• Read more

  5302S

  Double row angular contact ball bearing.

  Enquire now

  Symbol

  Value

  Description

  BS

  53

  Bearing Series

  BT

  Double row angular contact ball bearing

  Bearing Type

  d

  15 mm

  Bore diameter

  D

  42 mm

  Outside diameter

  B

  19 mm

  Width

  Cr

  17.6 kN

  Basic dynamic load rating, radial

  C0r

  10.2 kN

  Basic static load rating, radial

  ≈m

  0.13 kg

  Weight
